HUSQVARNA 435 II 15" Bar & Chain

Sale price

£364.99

Regular price £499.00
-£134.01
Tax included.
  • Ready To Ship

  • Estimated 2-5 Working Days

  • Please Note: We Ship Only Within Mainland UK

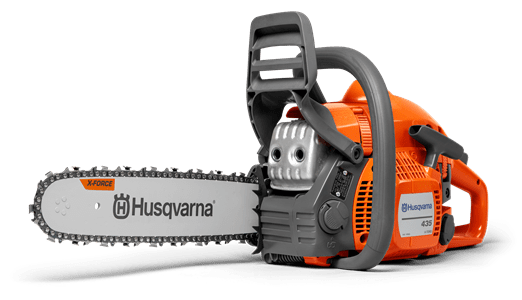

HUSQVARNA 435 II 15" Bar & Chain



970 55 97-35

 Chain speed at max power (m/s): 17.3 m/s
Power output: 1.6 kW
Power source: Petrol
Weight (excl. cutting equipment): 4.2 kg



Description
Husqvarna 435 is designed for the landowner who prefer a lightweight and efficient all-round petrol chainsaw that’s exceptionally easy to start and manoeuvre. Delivers versatile cutting capacity in a low-weight package, equipped with an array of features for smooth starting and handling: Flip-up tank caps, fuel pump, and auto-return stop switch. The fuel-efficient X-Torq® engine ensures low emission levels. The “e” version adds tool-less chain tensioner and Smart Start® for even easier handling.




Features
Air Injection™
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
X-Torq
Powerful and Efficient X-TORQ® Engine
Our X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.
565
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
445,450
Felling Marks
Dedicated marks for increased felling precision
flip-up tank cap
Flip-Up Fuel Cap
The flip-up fuel cap is easy to open and close when refueling, even if you are wearing thick gloves.
445,450
Ergonomic rear handle
Increased comfort with soft inlay, ergonomic trigger and assymetrical handle.
575XP
Side-mounted chain tensioner
Side-mounted chain tensioner makes chain adjustment quick and easy.
Three-piece crankshaft
Three-piece crankshaft
Forged three-piece crankshaft for maximum durability for the toughest applications.
visible fuel level
Fuel Indicator
Transparent fuel indicator makes it easy to check fuel level
Inertia chain brake
Effective inertia-activated chain brake.
455 Rancher
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Snap-lock cylinder cover
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.
445, 450
Easy to start
Combined start/stop switch and fuel pump make the saw very easy to start.

Capacity

Chain speed at 133% of maximum engine power speed
23 m/s
Chain speed at max power (m/s)
17.3 m/s
Clutch engagement speed (±120)
4300 rpm
Idling speed
2900 rpm
Ignition module air gap
0.3 mm
Maximum power speed
9000 rpm
Power output
1.6 kW
Torque, max.
2 Nm
Torque, max. at rpm
6300 rpm

Certifications

Cert machine dir. 2006/42/EC Decl. No.
0404/09/2012

Dimensions

Article gross weight
5387 g
Article net weight
4786 g
Bar length (inch)
15 in
Bar length
38 cm
Recommended bar length, min-max
13-18 in
Product Size, LxWxH
38.7x20.7x28.2 cm
Weight (excl. cutting equipment)
4.2 kg

Engine

Carburetor
Zama C1T-EL41A
Cylinder bore
41 mm
Cylinder displacement
40.9 cm³
Cylinder stroke
31 mm
Electrode gap
0.5 mm
Engine Family CARB
MHVXS.0414AC
Engine Family EPA
MHVXS.0414AC
Ignition module air gap
0.3 mm
Max engine/motor
13000 rpm
Spark Plug
Champion RCJ7Y, NGK BPMR7A

Equipment

Bar mount type
HSM
Chain type
H30
Chainsaw sub-group
Part time use chainsaws
Gauge
1.3 mm
Handle type
Standard
Chain pitch
.325"
Sprocket type
Spur 7

Lubricant

Fuel consumption
652 g/kWh
Fuel consumption
1.08 kg/h
Fuel tank volume
0.37 l
Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1
Oil pump capacity, max
13 ml/min
Oil pump capacity, min
13 ml/min
Oil pump type
Fixed flow
Oil tank volume
0.25 l
Power/fuel type
Gasoline

Packaging

Quantity in Master pack
1
