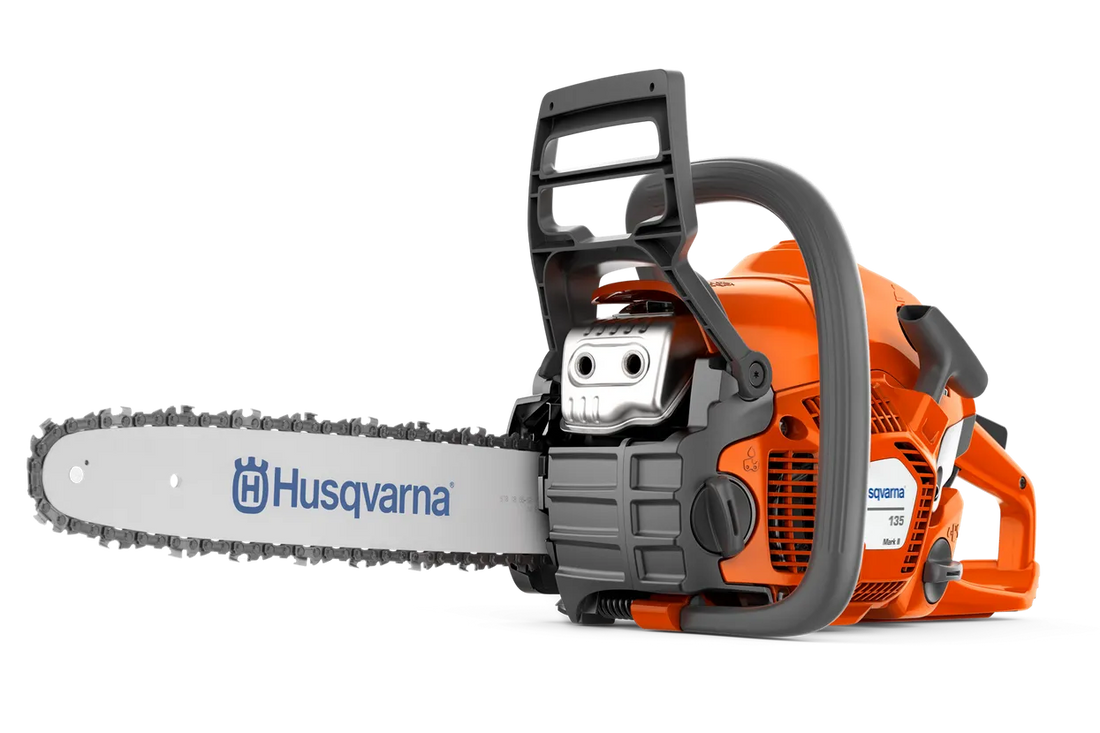

HUSQVARNA 135 Mark II 14" Bar & Chain

Sale price

£319.99

Regular price £329.00
-£9.01
Tax included.
  • Ready To Ship

  • Estimated 2-5 Working Days

  • Please Note: We Ship Only Within Mainland UK

HUSQVARNA 135 Mark II 14" Bar & Chain

967 86 18-14





 Chain speed at max power (m/s): 16.8 m/s
Power output: 1.6 kW
Power source: Petrol
Weight (excl. cutting equipment): 4.7 kg



Description
Lightweight, versatile and easy to use. This petrol chainsaw is powerful enough for tasks around the garden and features an X-Torq® engine to reduce emissions. It starts quickly and is easy to handle and maintain. It features an inertia chain brake for extra safety, while the chain is easily adjusted using the side-mounted chain tensioner. This Husqvarna petrol chainsaw is ideal for occasional cutting tasks such as cutting firewood and felling small trees.
Features
338XPT, 334T

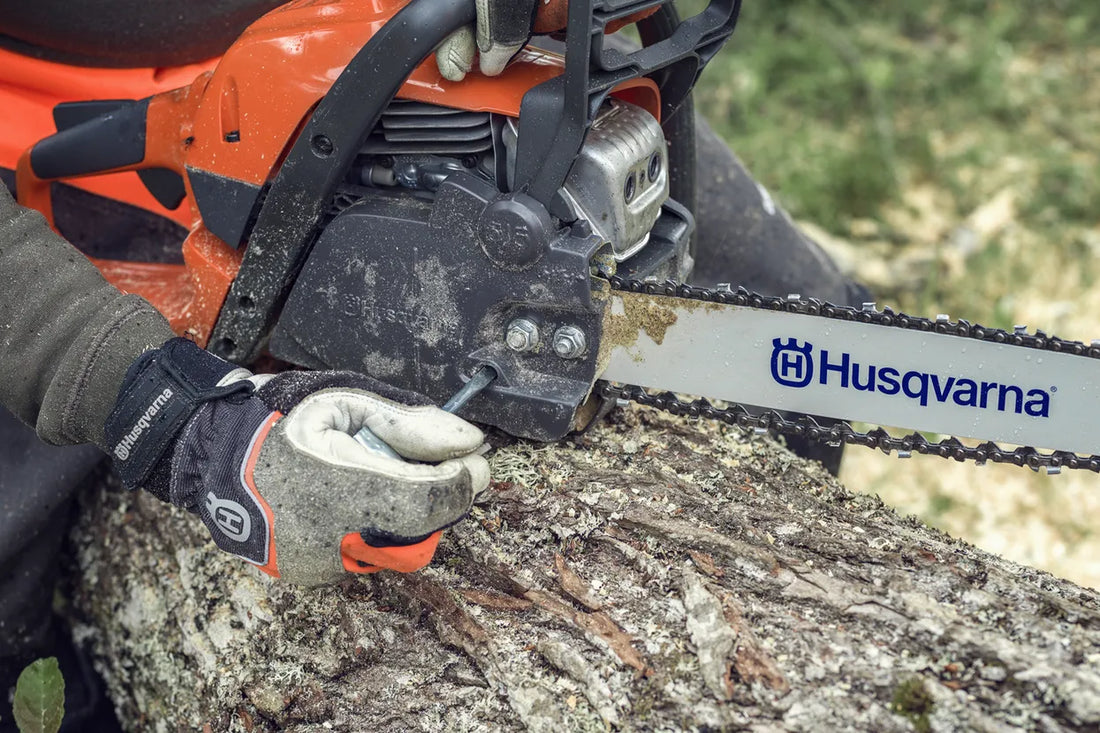

Chain tensioning from the side
Allows quick and convenient chain tensioning.
Air Injection™
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
X-Torq
Powerful and Efficient X-TORQ® Engine
Our X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.
Inertia chain brake
Effective inertia-activated chain brake.
445, 450
Combined choke/stop control
Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.
455 Rancher
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.
Smart Start
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.





Capacity

Chain speed at 133% of maximum engine power speed
22.3 m/s
Chain speed at max power (m/s)
16.8 m/s
Clutch engagement speed (±120)
4000 rpm
Clutch engagement upper limit
4500 rpm
Idling speed
3000 rpm
Idling upper limit
3200 rpm
Ignition module air gap
0.3 mm
Maximum power speed
9000 rpm
Power output
1.6 kW
Racing speed lower limit
11200 rpm
Torque, max.
1.84 Nm
Torque, max. at rpm
8000 rpm

Certifications

Cert machine dir. 2006/42/EC Decl. No.
Yes

Dimensions

Article gross weight
7300 g
Article net weight
6000 g
Bar length (inch)
14 in
Bar length
35 cm
Recommended bar length, min-max
14-16 in
Product Size, LxWxH
41.7x23x29 cm
Weight (excl. cutting equipment)
4.7 kg

Engine

Cylinder bore
39 mm
Cylinder displacement
38 cm³
Cylinder stroke
32 mm
Electrode gap
0.55 mm
Engine Family CARB
*PWES.0384CX
Engine Family EPA
-PWES.0384CX
Ignition module air gap
0.3 mm
Spark Plug
NGK BPMR7A

Equipment

Bar mount type
HSM
Chain type
S93G
Chainsaw sub-group
Occasional use chainsaws
Handle type
Standard
Chain pitch
3/8" mini
Sprocket type
Spur 6

Lubricant

Fuel consumption
725 g/kWh
Fuel consumption
0.725 kg/h
Fuel tank volume
0.37 l
Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1
Oil pump type
Automatic
Oil tank volume
0.26 l
Power/fuel type
Gasoline

Packaging

Packaging height
333 mm
Packaging length
495 mm
Packaging volume
27.814 dm³
Packaging width
285 mm
Quantity in Master pack
1
